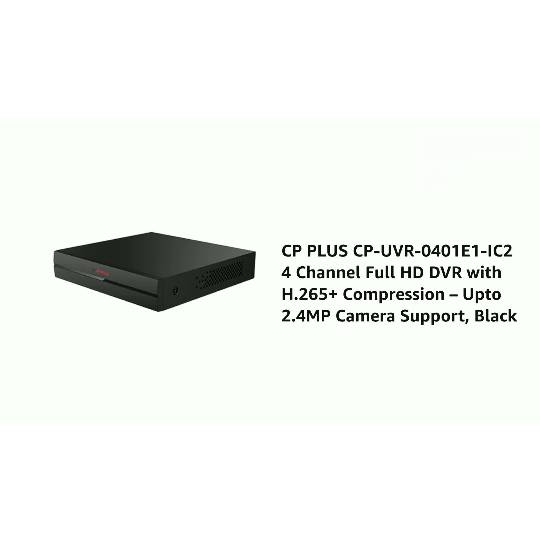

Name: CP Plus 4 Channel 2MP HD DVR (CP-UVR-0401E1-IC2)
Brand: CP Plus
Price: 2999.00 INR
Availability: InStock

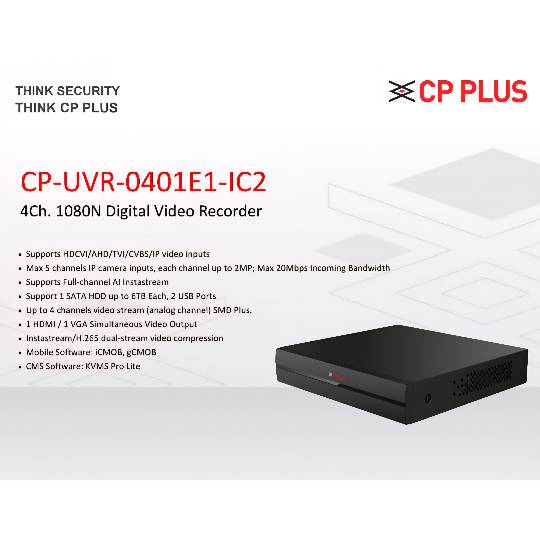

CP Plus 4 Channel 2MP HD DVR (CP-UVR-0401E1-IC2)

Key Features :

Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 5 channels IP camera inputs, each channel up to 2MP
Max 20Mbps Incoming Bandwidth
Supports Full-channel AI Instastream
Support 1 SATA HDD up to 6TB Each, 2 USB Ports
Up to 4 channels video stream (analog channel) SMD Plus
1 HDMI / 1 VGA Simultaneous Video Output
Instastream/H.265 dual-stream video compression
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro Lite

Secure your home or small office with the CP Plus 4-Channel 2MP HD DVR. It supports HDCVI/AHD/TVI/CVBS and IP inputs (up to 2 MP) and features H.265 dual-stream compression for longer recording. Easily backup via USB, monitor live using the iCMOB/gCMOB app, and use a single SATA HDD up to 6 TB. Ideal for Indian setups needing reliable 4-camera CCTV recording.

Specifications
Model	CP-UVR-0401E1-IC2
Processor	Embedded processor
Operating System	Embedded LINUX
IP Camera Input	4 + 1 channels, each channel up to 2 MP
Two-way Talk	Reuse audio in/out, RCA
User Interface	GUI
Performance SMD Plus	4 Channels
AI Search SMD	Search by target classification (Human, Vehicle)

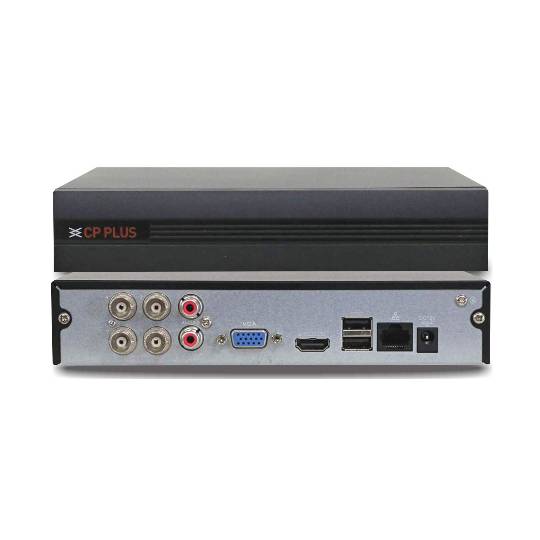

Video Input	4 channels BNC
Video Output	1 HDMI, 1 VGA
Video Compression	AI Instastream / Instastream / H.265 / H.264+ / H.264
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Resolution	1080N; 720P; 960H; D1; CIF
Video Recording	Main Stream: All channels 1080N/720P/960H/D1/CIF (1–25/30 fps) Sub Stream: CIF (1–15 fps)
Video Display Split	1 / 4
Bit Rate	32 kbps – 4096 kbps per channel
Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Audio Sample Rate	8 kHz, 16 bit per channel
Audio Bit Rate	64 kbps per channel
Motion Detection	Supported
Video Loss	Supported
Audio Compression	G.711A, G.711U, PCM
Camera Blank	Supported
Smart Phone Access	iPhone, iPad, Android Phone
Hard Disk	1 SATA port, up to 6 TB each
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Playback	1 / 4 Channels
Recording Mode	Manual, Schedule (Regular, Continuous), MD (Motion Detection, Video Loss, Tampering), Alarm, Stop
Search Mode	Time/Date, Alarm, MD & Exact search (accurate to second)
Playback Function	Play, Pause, Stop, Rewind, Fast/Slow play, Next/Previous file, Next/Previous camera, Full screen, Repeat, Shuffle, Backup, Digital zoom
Backup Mode	USB Device / Network
Interface Ports	2 × USB 2.0
Max User Access	128 users
Record Interval	1 – 60 min (default 60 min), Pre-record: 1 – 30 sec, Post-record: 10 – 300 sec
Ethernet	1 RJ-45 port (100 Mbps)
Protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, InstaOn Cloud, IP Search, ONVIF 16.12, CGI Conformant
Power Supply	DC 12 V / 1.5 A
Power Consumption	< 7 W (without HDD)
Working Temperature	−10 °C ~ +45 °C (14 °F ~ 113 °F), 0 ~ 90 % RH
Dimensions (W × D × H)	198 mm × 203 mm × 41.5 mm
Weight	0.57 kg (without HDD)

WARRANTY

Warranty Details
Warranty Summary	2 Year
Warranty Service Type	Repair or Replacement through Authorized Service Center
Covered in Warranty	Manufacturing Defects
Not Covered in Warranty	Physical Damage, Burning, or Mishandling, Electrical Damage
Manufacturer	Aditya Infotech Ltd
Country of Origin	India
Read more	Warranty Policy
