Specification
Model	CS-H6c-R105-1J4WF
Resolution	4 MP / 2K⁺ (2560 × 1440 max)
Image Sensor	1/3″ Progressive-Scan CMOS, F1.6
Lens / Field of View	4 mm lens; Diagonal 90°, Horizontal 80°, Vertical 43°
Day & Night	IR-cut filter with auto switching
Digital Noise Reduction	3D DNR
WDR	Digital WDR
Video Compression	H.264 / H.265
Frame Rate	Max 30 fps (self-adaptive network transmission)

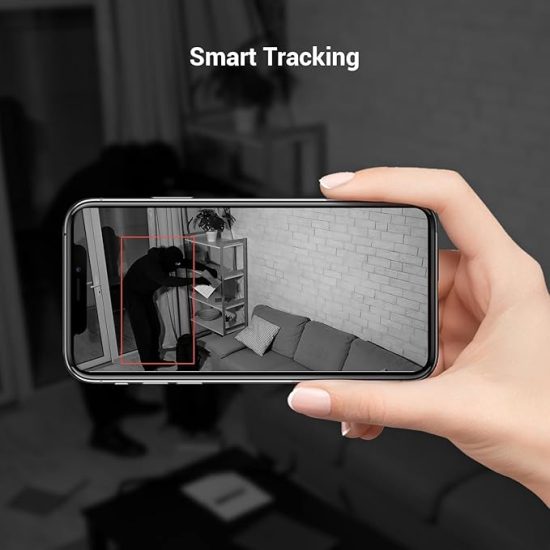

Smart Features	Motion detection, Human shape detection, Loud noise detection, Patrol mode
Storage	Micro-SD card (up to 512 GB)
Connections	RJ-45 (10/100 Mbps) & Wi-Fi (2.4 GHz + 5 GHz)
Wi-Fi Specs	IEEE 802.11 a/b/g/n; 2.4 GHz & 5 GHz bands; EIRP 19 dBm; Antenna gain 1.9 dBi
Operating Conditions	-10 °C to 45 °C; Humidity ≤95% (non-condensing)
Power Supply & Consumption	DC 5 V / 2 A; Max 8 W
IR Range / Night Vision	Up to 10 m (≈ 33 ft)
Dimensions & Weight	88 × 88.2 × 119 mm; 252 g (8.9 oz)
Certifications & Box Contents	Camera, Power Adapter, Cable, Mounting Kit, Quick Start Guide \| Cert: CE, UL, WEEE, REACH, RoHS, UKCA

Warranty Details
Warranty Summary	1 Year
Warranty Service Type	Repair or Replacement through Authorized Service Center
Covered in Warranty	Manufacturing Defects Only
Not Covered in Warranty	Physical Damage, Burning, or Mishandling
Manufacturer	Hangzhou EZVIZ Network Co., Ltd.
Country of Origin	China

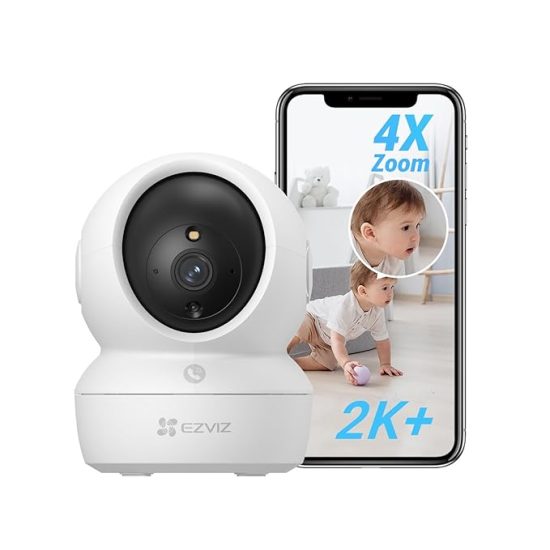

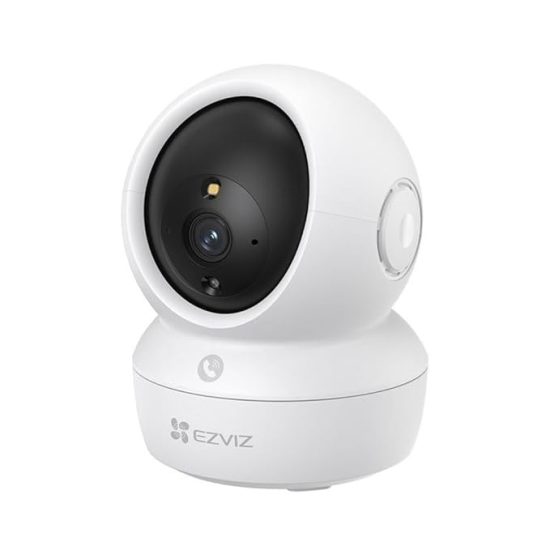

EZVIZ H6C Pro 4MP 2K+ Indoor Night Color Smart Wi-Fi Camera
