Specifications
Model	CS-H7c-R100-8G44WF
Resolution	Max. 2560 × 1440 (2K⁺) dual-lens
Image Sensor	1/3″ Progressive Scan CMOS

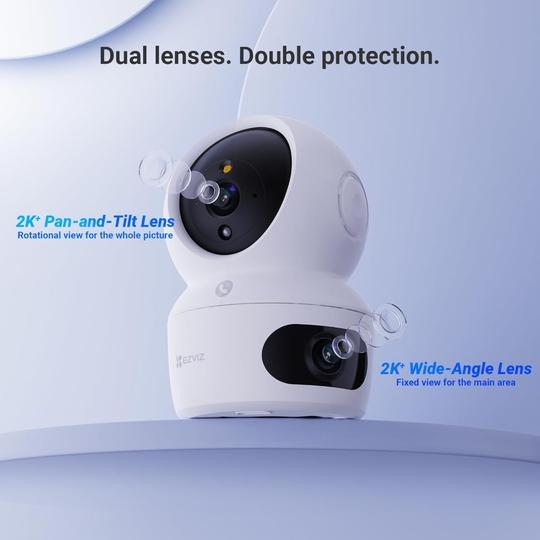

Fixed Lens	2.8 mm @ F1.6 – View angle: 108° (Diagonal) / 92° (H) / 50° (V)

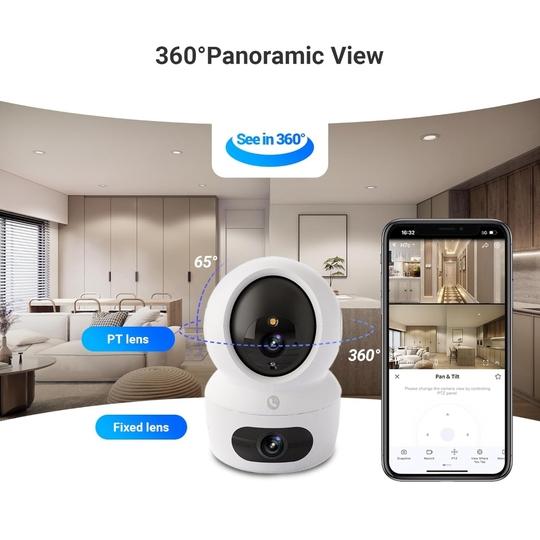

Pan & Tilt (PT) Lens	6 mm @ F1.6 – View angle: 60° (Diagonal) / 51° (H) / 28° (V)
Shutter	Self-adaptive shutter
Day & Night	IR-cut filter with auto-switching
Noise Reduction / WDR	3D DNR • Digital WDR supported
Video Compression	H.264 / H.265
Frame Rate	Max 30 fps (self-adaptive during network transmission)
Smart Features	Motion Detection • Human Shape Detection • Loud Noise Detection • Patrol Mode
Storage	MicroSD card slot (up to 512 GB)
Network / WiFi	WiFi 2.4 GHz & 5 GHz (IEEE 802.11a/b/g/n/ac/ax) • Wired RJ-45 10/100 Mbps
Operating Conditions	–10 °C ~ +45 °C (−14 °F to 113 °F); Humidity ≤ 95% (non-condensing)
Power Supply & Consumption	DC 5 V/2 A • Max power consumption: 8 W
IR Range	Up to 10 meters (≈ 32.8 ft)
Dimensions	88 × 88 × 131.5 mm (3.46″ × 3.47″ × 4.69″)
Net Weight	270 g (9.52 oz)
Included in Box	Camera (x1), Power Adapter (x1), Power Cable (x1), Drill Template (x1), Mounting Plate (x1), Screw Kit (x1), Quick Start Guide (x1)
Certifications	CE / UKCA / WEEE / RoHS / REACH / UL

Warranty Details
Warranty Summary	1 Year
Warranty Service Type	Repair or Replacement through Authorized Service Center
Covered in Warranty	Manufacturing Defects Only
Not Covered in Warranty	Physical Damage, Burning, or Mishandling
Manufacturer	Hangzhou EZVIZ Network Co., Ltd.
Country of Origin	China

EZVIZ H7C 4MP + 4MP Dual Lens Pan & Tilt Indoor Wi-Fi Camera
