Specifications
Model	CS-H8c (4MP)
Image Sensor	1/2.7″ Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Lens	4 mm @ F2.0 (46° V / 89° H / 104° diag) or 6 mm @ F2.0 (28° V / 52° H / 60° diag)
Lens Mount	M12

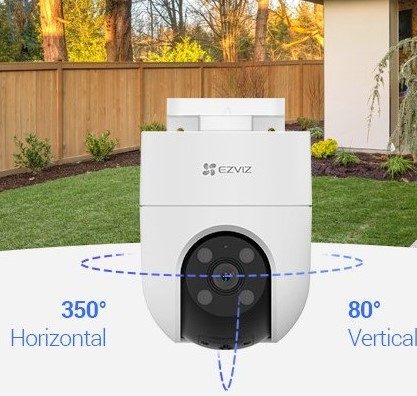

Pan-Tilt Angle	Pan: 350°, Tilt: 80°
Minimum Illumination	0.5 Lux @ (F1.6, AGC ON); 0 Lux with IR
Day & Night	IR-cut filter with auto-switching
DNR	3D DNR
WDR	Digital WDR
Night Vision Distance	30 m / 98 ft
Max. Resolution	2560 x 1440 (QHD)
Frame Rate	Max: 30 fps; Self-adaptive during network transmission
Video Compression	H.265 / H.264 (H.265 Main Profile)
Max. Bitrate	2 Mbps
Wi-Fi Standard	IEEE 802.11b/g/n
Wi-Fi Frequency	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	20 MHz
Transmission Rate	11b: 11 Mbps; 11g: 54 Mbps; 11n: 72 Mbps
Wi-Fi Pairing	AP pairing
Wired Network	RJ45 ×1 (10/100 Mbps Adaptive Ethernet Port)
Local Storage	Micro SD card slot (Up to 512 GB)
Cloud Storage	Supported (subscription required)
Smart Alarm Features	AI-Powered Human Shape Detection; preset angle recall; two-way talk; siren + strobe spotlight
Operating Conditions	-30 °C to 50 °C (-22 °F to 122 °F), Humidity ≤ 95% (non-condensing)
Power Supply	DC 12V / 1A
Power Consumption	Max. 12 W
Dimensions	100.05 × 129.19 × 149.75 mm (3.94 × 5.09 × 5.9 inch)
Net Weight	420 g (14.8 oz)
Certifications	CE / FCC / UKCA / UL / WEEE / RoHS / REACH

Warranty Details
Warranty Summary	1 Year
Warranty Service Type	Repair or Replacement through Authorized Service Center
Covered in Warranty	Manufacturing Defects Only
Not Covered in Warranty	Physical Damage, Burning, or Mishandling
Manufacturer	Hangzhou EZVIZ Network Co., Ltd.
Country of Origin	China

EZVIZ H8C 4MP 2K Outdoor Pan & Tilt Wi-Fi Camera

SPECIFICATIONS
