Specifications
Image Sensor	1/2.7″ Progressive Scan CMOS

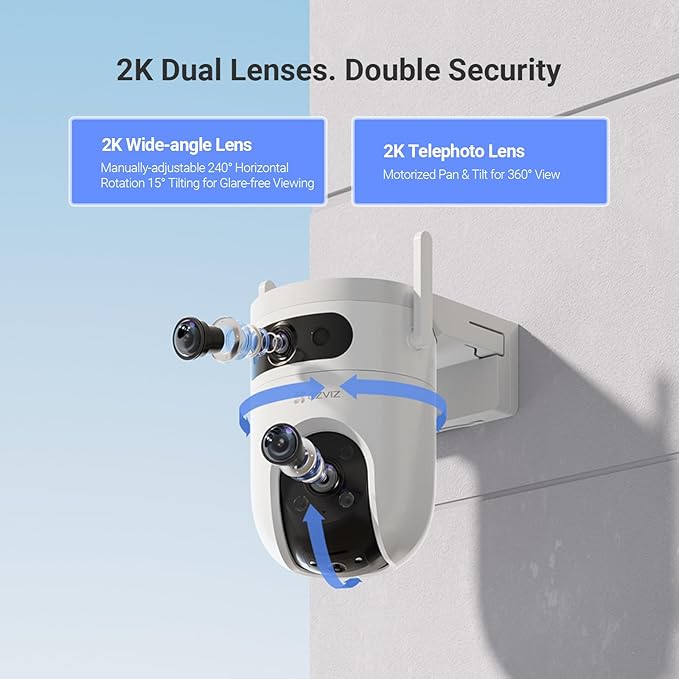

Lens	Fixed Lens: 2.8 mm @ F1.6 (Diagonal 132°, Horizontal 110°, Vertical 58°) Pan & Tilt Lens: 6 mm @ F1.6 (Diagonal 64°, Horizontal 56°, Vertical 29°)
Pan & Tilt Range	Pan: 350° \| Tilt: 80°
Minimum Illumination	0.5 Lux @ (F1.6, AGC ON); 0 Lux with IR
Day/Night Function	IR-cut filter with auto-switching
Noise Reduction / WDR	3D DNR; Digital WDR
Night Vision Distance	Up to 30 m / 98 ft (B&W night)
Maximum Resolution	2880 × 1620 (≈5MP + 5MP dual-lens)
Frame Rate	Max 15 fps; self-adaptive during network transmission
Video Compression	H.265 / H.264 (H.265 Main Profile)
Wi-Fi Standard	IEEE 802.11 b/g/n (2.4 GHz) Frequency Range: 2.4 GHz ~ 2.4835 GHz Transmission Rate: 11b 11 Mbps; 11g 54 Mbps; 11n 150 Mbps
Wired Network Interface	RJ45 × 1 (10 / 100 Mbps Adaptive)
Storage Options	microSD card slot up to 512 GB \| EZVIZ CloudPlay support

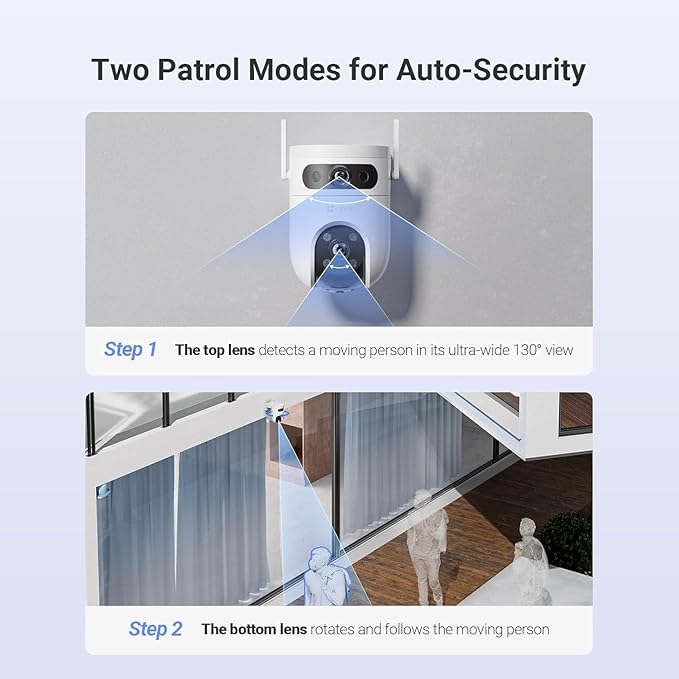

Smart Alarm / Features	AI-powered human & vehicle detection \| Auto-Tracking \| Two-way talk \| Preset locations \| Custom alert zones
Operating Conditions	–30 °C to 50 °C (–22 °F to 122 °F); Humidity ≤ 95% (non-condensing)
Weatherproof / IP Rating	IP65 Weather-proof design
Power Supply / Consumption	DC 12 V / 1.5 A \| Max power 12 W
Dimensions	145 × 116 × 142 mm (5.71 × 4.57 × 5.59 inch)
Weight	Net: 668 g \| With packaging: 960 g

Warranty Details
Warranty Summary	1 Year
Warranty Service Type	Repair or Replacement through Authorized Service Center
Covered in Warranty	Manufacturing Defects Only
Not Covered in Warranty	Physical Damage, Burning, or Mishandling
Manufacturer	Hangzhou EZVIZ Network Co., Ltd.
Country of Origin	China

EZVIZ H9C 5MP + 5MP Dual Lens 3K Pan & Tilt Wi-Fi Camera

SPECIFICATIONS
