Specification	Details
Model	CS-TY1-C0-8B4WF
Image Sensor	F2.2 @ 1/3″ Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Lens	4 mm, View Angle: 124° (Diagonal), 85° (Horizontal), 55° (Vertical)
Lens Mount	M12
Day & Night	IR-cut filter with auto-switching
DNR	3D DNR
WDR	Digital WDR
Video Compression	H.265 / H.264
Max. Resolution	2560 × 1440 (4MP)
Frame Rate	Max. 20 fps; self-adaptive during network transmission
Smart Alarm	Human Motion Detection
Wi-Fi Pairing	AP pairing
Network Protocol	EZVIZ Cloud proprietary protocol
Storage	Micro SD card slot (Max. 256 GB)
Power	DC 5 V/2 A, Max 5 W
Wired Network	RJ45 ×1 (10/100 Mbps self-adaptive)
Wi-Fi Standard	IEEE 802.11b/g/n
Wi-Fi Frequency	2.4 GHz ~ 2.4835 GHz
Wi-Fi Channel Bandwidth	20 MHz
Wi-Fi Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate	11b: 11 Mbps; 11g: 54 Mbps; 11n: 72 Mbps
Output Power (EIRP)	19 dBm
Antenna Gain	1.9 dBi
Operating Conditions	-10 °C to 45 °C (14 °F to 113 °F), Humidity ≤ 95% (non-condensing)
IR Range	Max. 10 m (≈33 ft)
Dimensions	88 × 88 × 119 mm (3.46 × 3.46 × 4.67 inch)
Weight (Bare)	259 g (9.14 oz)
Certifications	FCC / UL / CE / WEEE / REACH / RoHS

Warranty Details
Warranty Summary	1 Year
Warranty Service Type	Repair or Replacement through Authorized Service Center
Covered in Warranty	Manufacturing Defects Only
Not Covered in Warranty	Physical Damage, Burning, or Mishandling
Manufacturer	Hangzhou EZVIZ Network Co., Ltd.
Country of Origin	China

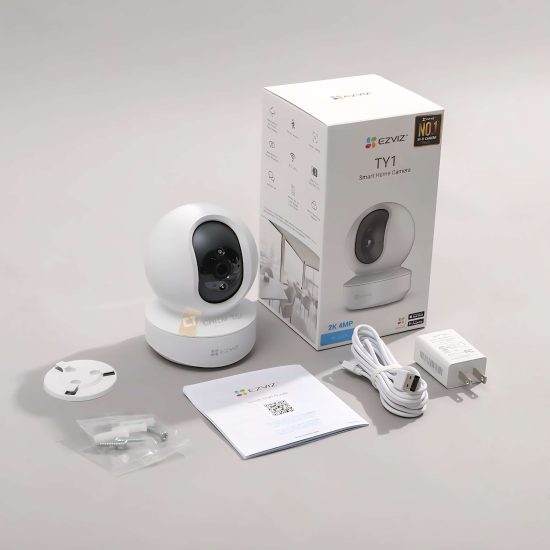

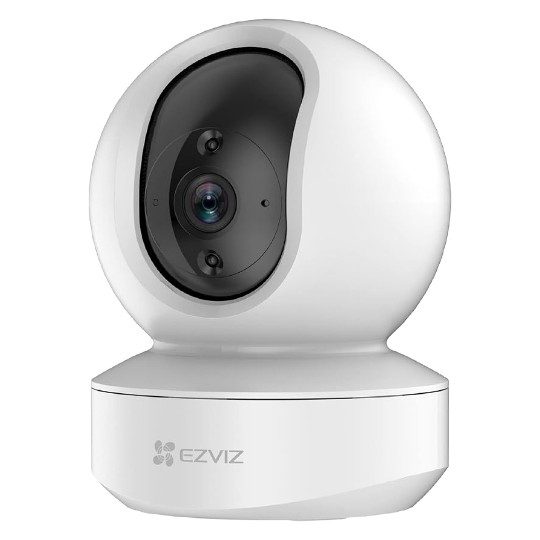

EZVIZ TY1 4MP 2K Indoor Pan & Tilt Smart Wi-Fi Camera
